Name: Automatic Backup Power Input Device
Brand: GoodE
SKU: 005
Availability: InStock
Rating: 5 (1 reviews)

Description

Core Features

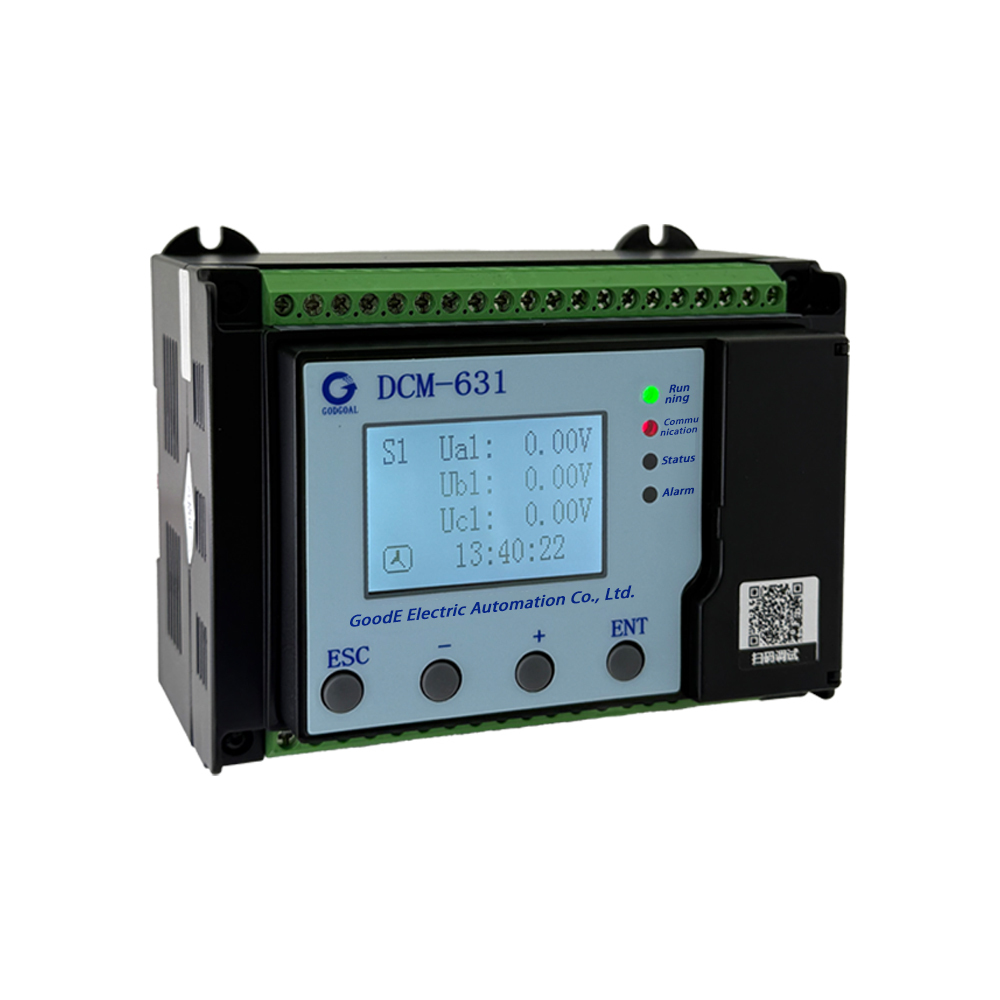

● The DCM-631 Series Low Voltage Automatic Transfer Switch (ATS) Device is designed for low-voltage power distribution systems. With ultra-compact dimensions, it is suitable for installation in various withdrawable (including 1/4 drawer), fixed and hybrid switchgear cabinets. It features easy installation, rational layout, convenient maintenance, cable saving, safety and reliability.
● Built-in PLC module, supporting multiple ATS logics and high anti-interference hardware design.
● LED indications for device power supply, communication status, operating conditions and alarms for easy system inspection and maintenance.
● The standard module provides 8-channel digital input acquisition and up to 9-channel digital output control.
● It can be networked with various brands of PLCs, as well as software such as KINGVIEW, FIXandWinCC.
● Equipped with a 7-inch color touch terminal, it monitors equipment operation status and working conditions, and supports setting and parameter modification, with easier operation and friendly human-machine interface.

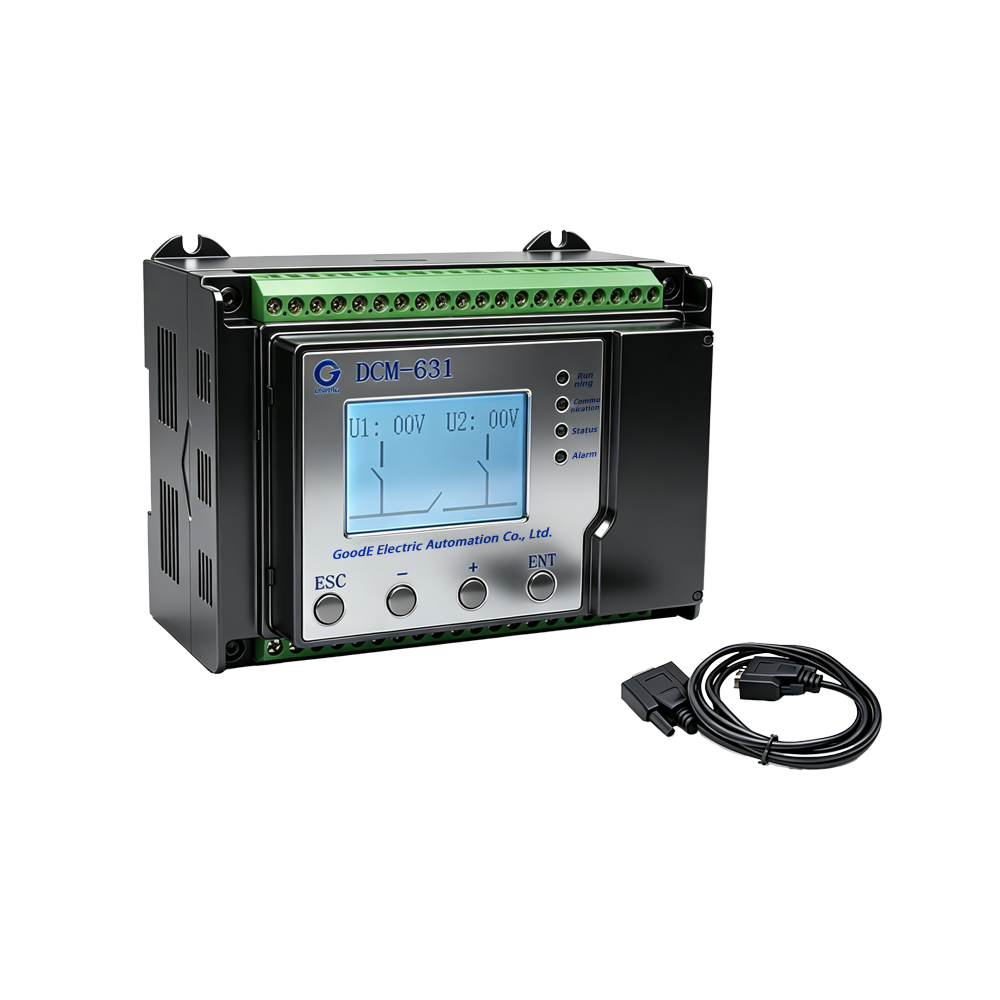

● Equipped with a detachable Chinese LCD terminal, its friendly human-machine interface allows direct monitoring of equipment operation status and working conditions, as well as setting and parameter modification.

Models and Functions

Product Model	Application	Function Description
DCM-631B	Single bus sectionalized system	Bus tie switch automatic transfer.
DCM-631Z	Dual power supply system	Automatic transfer with automatic restoration, automatic transfer without restoration, or mutual standby of two incoming lines.
DCM-631K	One mains + one generator	Generator automatic transfer and mains automatic restoration.
DCM-631M	Single bus sectionalized system	Bus tie switch automatic transfer, incoming line automatic restoration or incoming line mutual transfer.
DCM-631Q	Single bus sectionalized system	Incoming line automatic closing, bus tie switch automatic transfer, incoming line automatic restoration or incoming line mutual transfer.
DCM-631F	Dual power supply with generator system	Automatic transfer of main/standby dual incoming lines and generator, plus automatic restoration on power recovery.
DCM-631T	Single bus sectionalized system with standby power supply	Bus tie switch automatic transfer, incoming line automatic restoration, standby power automatic transfer and automatic restoration on power recovery.
DCM-631G	Single bus sectionalized system with generator	Bus tie switch automatic transfer, incoming line automatic restoration, generator automatic transfer and automatic restoration on power recovery.
DCM-631S	Single-phase single bus automatic transfer & restoration system	Single-phase bus tie switch automatic transfer, single-phase incoming line automatic restoration.

Automatic Backup Power Input Device

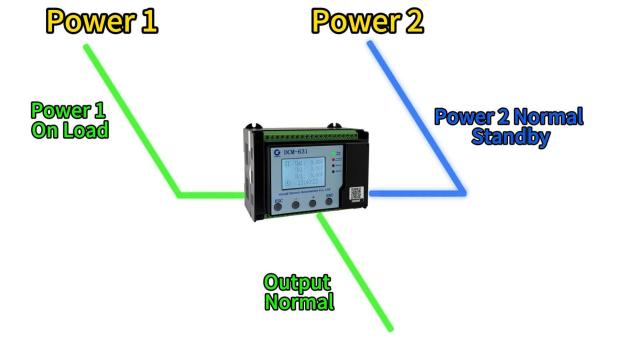

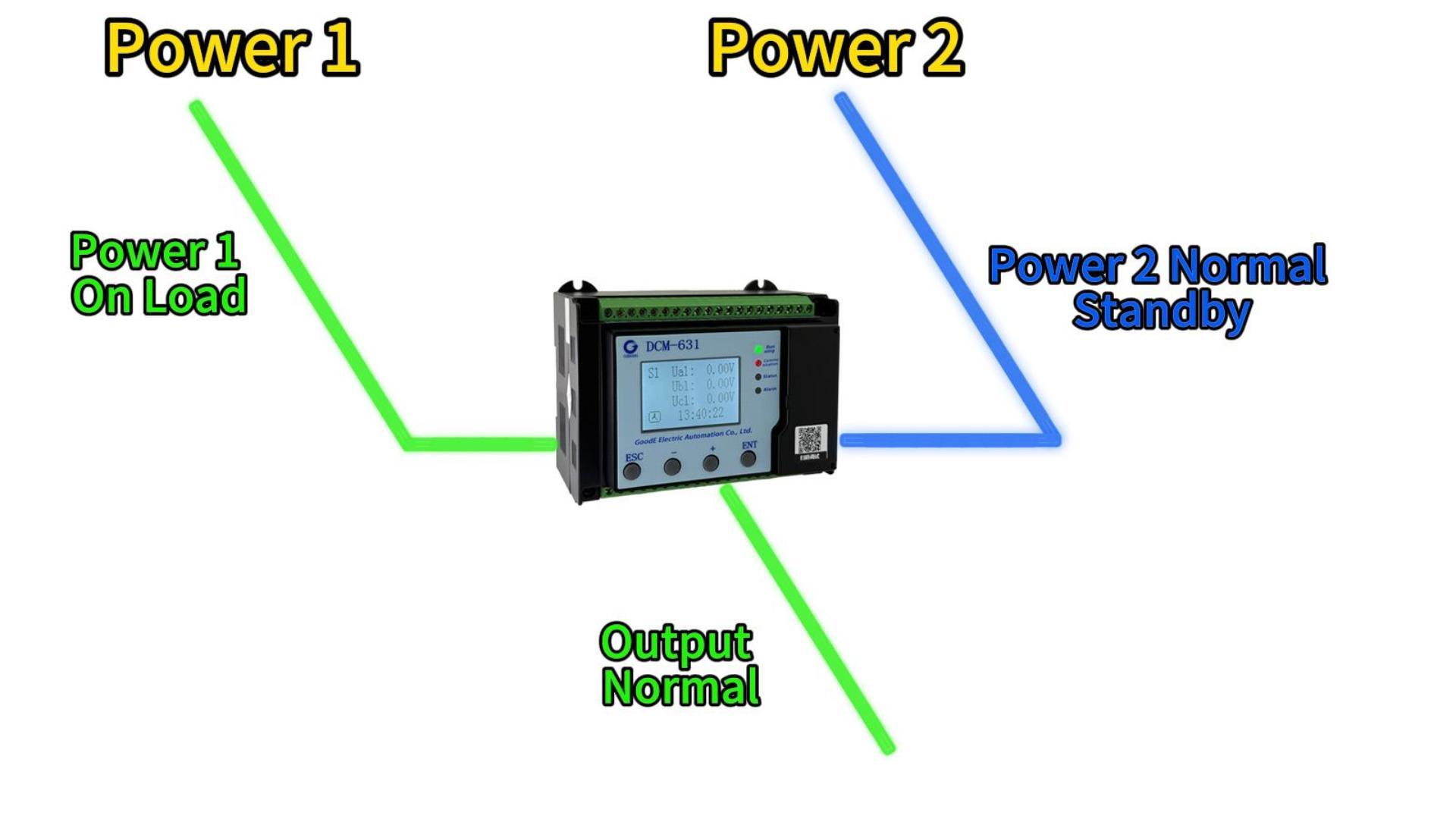

DCM-631 Series Low Voltage Automatic Transfer Switch Device is mainly used in low-voltage power distribution systems. It realizes fast and reliable switching between main power supply and standby power supply, ensuring reliable power supply for production.

Equipped with a built-in PLC module, it provides multiple logic function options. Various parameters can be adjusted according to on-site operation to meet the requirements of different applications.
